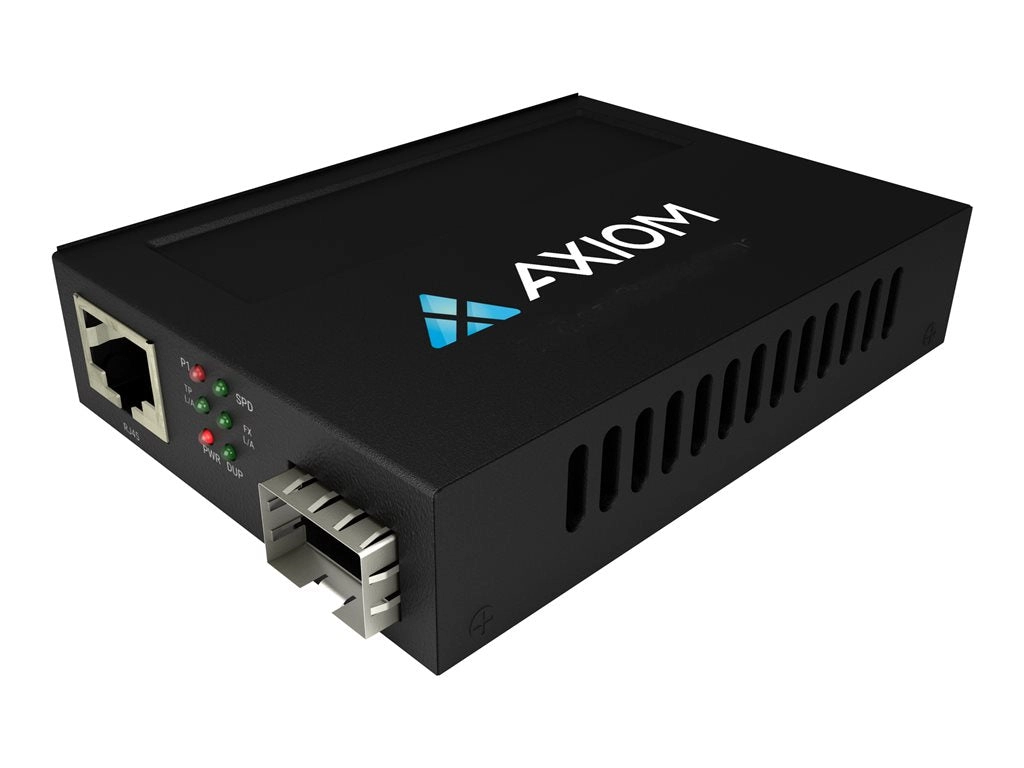

Axiom - Fiber media converter - 1GbE - over CAT 5e/6 - 10Base-T, 1000Base-LX, 1000Base-TX, 100Base-TX - RJ-45 / LC single-mode - up to 49.7 miles - 850 nm / 1310 nm / 1550 nm

• Versatile connectivity
  This Axiom fiber media converter offers a wide range of connectivity options with RJ-45 and LC single-mode connectors, supporting Ethernet 10Base-T/100Base-TX/1000Base-T and Ethernet 1000Base-LX/1000Base-SX. It's designed to meet diverse networking requirements, ensuring seamless integration into existing setups.
• Enhanced performance
  With a data transfer rate of 1 Gbps and support for 16 KB Jumbo Frame, this device ensures high-speed, efficient data transmission. The built-in DIP switch and Link Fault Pass Through function (LFP) enhance its performance, making it a reliable choice for extending network connections.
• Robust design
  Operating within a wide temperature range and with over-current protection, this Axiom product is built to withstand harsh environmental conditions. Its external form factor and internal power supply are designed for durability and continuous operation.
• Advanced features
  Features such as auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, and half duplex mode, along with Power over Ethernet (PoE ) capability, make this fiber media converter a powerful tool for network management and expansion.

The Axiom POE (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
• 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
• IEEE802.3at PoE PSE compatible
• Built-in AC/DC power supply
• Over-current protection
• DIP switch to set different configurations
• LFP (Link Fault Pass-through) support.

• Supports a wide range of Ethernet standards including IEEE 802.3, IEEE 802.3ab, and IEEE 802.3at
• Data transfer rate of 1 Gbps for high-speed connectivity
• Power over Ethernet (PoE ) for flexible power options
• Operational across a broad temperature range from 0°C to 50°C
• Max transfer distance of 80 km, ideal for extended network connections
